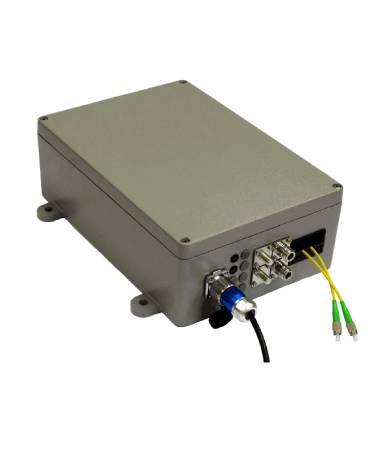

IF Fiber 70/140 MHZ Optic Link | GL7330

Features & Benefits

  • 10Km Transmission Distance
  • Selectable AGC/MGC
  • Front Panel Test Port
  • Powerful Monitoring Features
  • Compatible with all 1st Generation Sat-Light Products


Global Foxcom’s Sat-Light/Gold 70/140MHz IF Link offers a high performance, cost effective alternative to conventional coaxial-cabled systems. Sat-Light/Gold L-Band IFL operates from range of 10 to 200MHz. The Gold Series L-Band link is designed for a wide range of satellite up and downlinking facilities whereby high CNR levels are required. Global Foxcom’s high dynamic range DFB laser delivers exceptional signal quality for the most demanding of applications.


The new Sat-Light Gold series is compatible with first generation Sat-Light 7000 Series platform.The Gold Series support L-Band, 70/140MHz IF, Wide Band (10-2200 MHz), 10MHz Reference, Redundancy, M & C, SNMP, Ethernet, and Serial Data Communication.


The link consists of a high input power optical transmitter, which receives the RF signal from an IF modem, and an optical receiver that connects to the antenna BUC. All satellite modulation schemes are accommodated – digital or analog. Inherently low phase is achieved by direct modulation of the laser diode.

RF Specification Value
Frequency Range – Bandwidth 10-200MHz
Amplitude Response @ Unity Gain ±0.4dB
Noise Figure 18dB
Output IP3 (OIP3) 20dBm
Input Signal Range – Total Power 0 to -30dBm
RF Output Signal Range – Total Power 0 to -25dBm
Optical Specifications
Optical Budget / Distance 1310nm 1550nm 4dB (8Km | 15Km)
